TECHNICAL DATA
Width: From 50mm up to 600mm
Height: From 40mm up to 100mm
Length: Up to 6m
Thickness: Between 1.5mm and 2.0mm
* Special dimension can be produced upon
the customer’s requests.
CABLE TRAY MATERIAL
- Steel
- Stainless Steel
- Aluminium
CABLE TRAY FINISHING
- Hot-dipped Galvanized Cable Trays
- Pre-Galvanized Cable Trays
- Electro-Static Powder Coating
INTRODUCTION

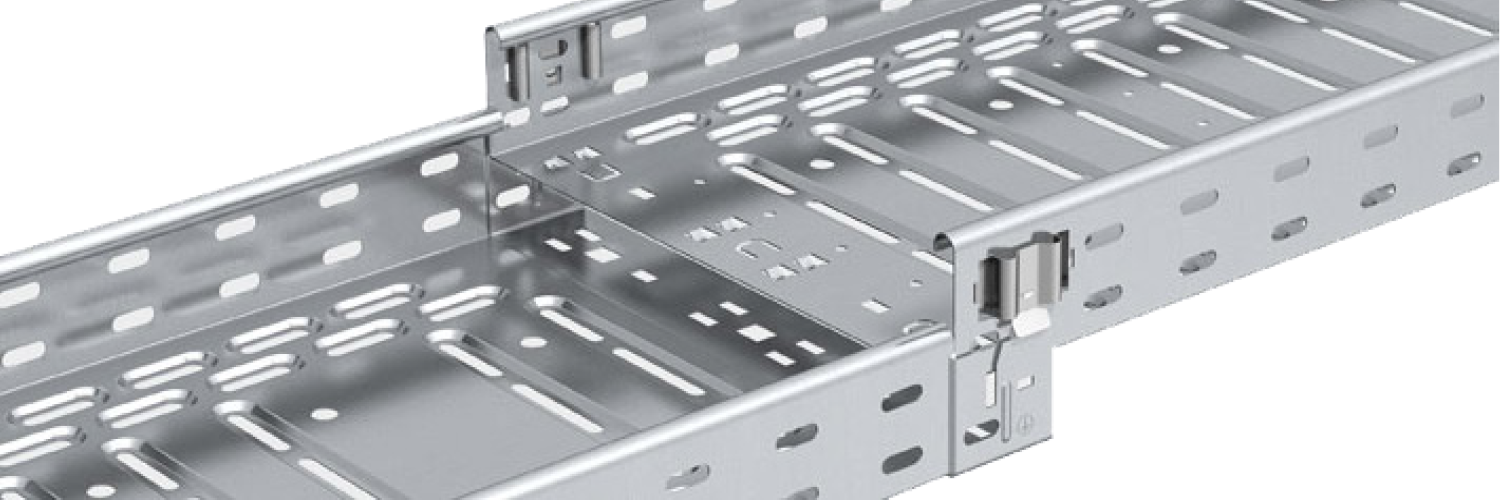

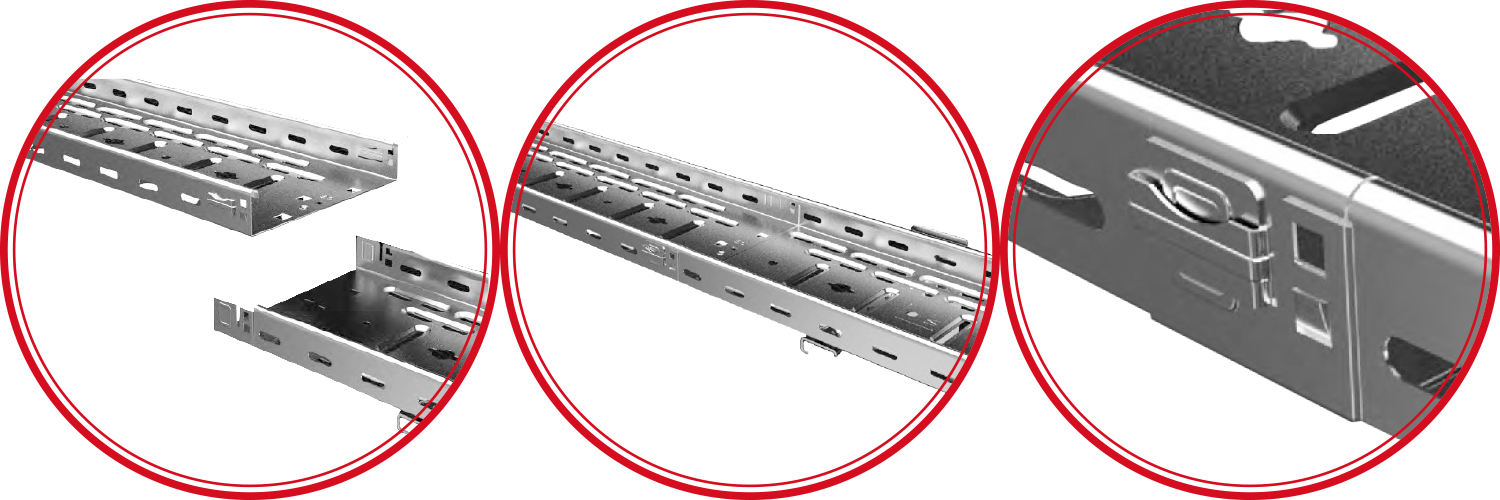

Click-fit type cable trays can be bolted together without
requiring additional accessories thanks to the Snap-On system at its end sections. It provides great savings with the lowest thickness and lowest cost as well as shortest time during
installations. With a side height of 35 mm, all fittings and the straight connection set are also available.
ACCESSORIES
- Cable Tray Cover
- Coupler
- Adjustable Coupler
- Horizontal Bends 45°
- Horizontal Bends 90°
- Reducer
- Tee Bend
- Crossing Elements
- Inside Vertical Bend
- Outside Vertical Bend
- End Cap
- Separator
