• Max. Operating Temperature: 70°C
  • Min. Bending Radius: 10 x cable Ø
  • Production Standards: EN 60794-3-12


These cables are used as underground cable ducts.
These cables having 0.4 and 0.5 mm conductor diameter are used for distribution network and 0.6, 0.63, 0.65, 0.8 and 0.9 mm conductor diameter are used for long distance network.

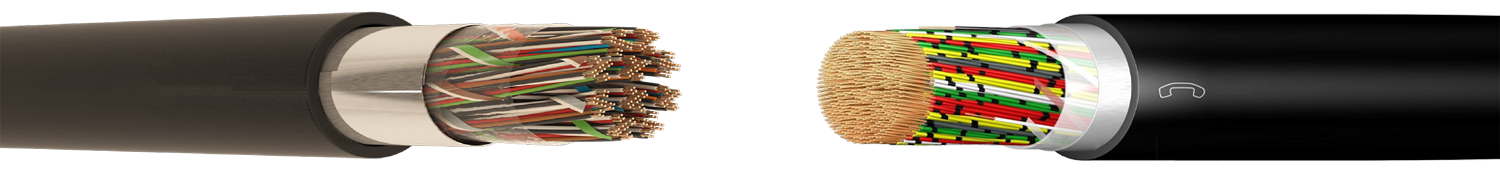

  • PD-AP; A-2Y(L)2Y


  • Conductor: Electrolytic annealed solid copper (CCITT Yellow Book Vol. III-2-G.541 B article, IEC 28 and ASTM B 3)
  • Insulation: Color coded solid polyethylene
    (BS 6234 Type 03 – ASTM D 1248)
  • Stranding: Star quads or pairs, each having special lay length to minimize the crosstalk and capacitance unbalance, are assembled into 10 pairs units. Groups having 25, 50 or 100 pairs are stranded together into cable core
  • Wrapping: A non-hygroscopic and dielectric polyester tape is applied on the cable core longitudinally or helically
  • Screen: Both sides are coated with copolymer coated flat aluminium tape over cable core longitudinally for screening
  • Outer Jacket: Linear low-density or medium-density, UV resistant black polyethylene outer jacket (ASTM D 1248)
