TECHNICAL DATA
- Max. Operating Temperature: 70°C
- Min. Bending Radius: 10 x cable Ø
- Production Standards: EN 60794-3-12
INTRODUCTION
These cables are designed to provide service extension to the subscribers. These cables having 0.5 mm conductor diameter are used for distribution network and 0.6 and 0.9 mm conductor diameter are used for long distance network.

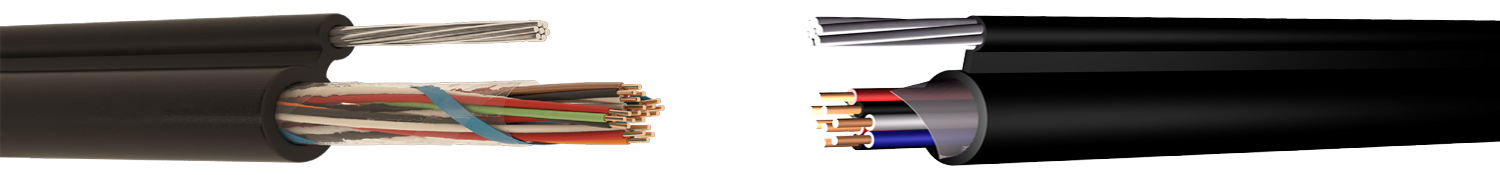

CODE of CABLE
- KPD-P-A – PD-P-A; A-02YST2Y – A-2YT2Y
CONSTRUCTION
- Conductor: Electrolytic annealed solid copper
- Insulation: Color coded solid polyethylene
(BS 6234 Type 03 – ASTM D 1248) - Stranding: Star quads or pairs, each having special lay length to minimize the crosstalk and capacitance unbalance, are assembled into 10 pairs units. Groups having 25, 50 or 100 pairs are stranded together into cable core
- Wrapping: A non-hygroscopic and dielectric polyester tape is applied on the cable core longitudinally or helically
- Screen: Both sides are coated with copolymer coated flat aluminium tape over cable core longitudinally for screening
- Messenger Wire: Galvanized steel messenger wire
(ASTM A 475-66T) - Outer Jacket: Linear low-density or medium-density,
UV resistant black polyethylene outer jacket (ASTM D 1248)
