TECHNICAL DATA
- Max. Operating Temperature: 90°C
- Max. Short Circuit Temperature: (max. 5 sec.) 200°C
- Rated Voltage: 0,6/1kV
- Min. Bending Radius: 8x Cable Outer Diameter
- Production Standard: NEK TS 606, IEC 60092/353, IEC 60092/350-360, IEC 60332/1-2,
IEC 60332/3-22 Cat A, IEC 60754 / 1-2,
IEC 61034 / 1-2 (DIN EN 50268 / 1-2), IEC60811 /403

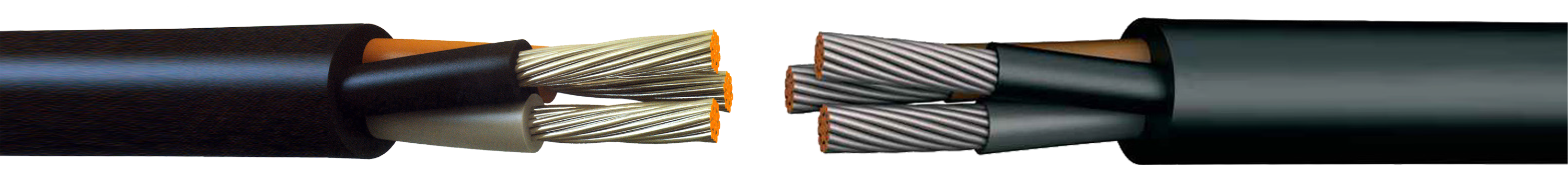

CONSTRUCTION
- Conductor: Electrolytic, stranded, annealed copper wire IEC 60228 Class 2 (Class 5 and / or tinned on request)
- Insulation: Ethylene Propylene Rubber (EPR)
- Inner Covering: Flame retardant and halogen-free compound
- Outer Sheath: Flame retardant, halogen-free thermoset compound, SHF2
- Color: Black and other color
CODE of CABLE
- RU TYPE P18
APPLICATION
These cables are used for permanent power, control, and lighting installations in both explosion and safe areas, as well as emergency and critical systems. Suitable for installations in mud and drilling or cleaning fluid-prone areas.
SECTION RANGE
- From 1.5mm2 up to 300mm2
CONDUCTOR QUANTITY
- From 1 core up to 37 cores
COLOUR CODE of CABLE
- Insulation Colours code could be according to the
International Standards or customer’s request/demand.
* Other colours can be produced upon the customer
requests.
