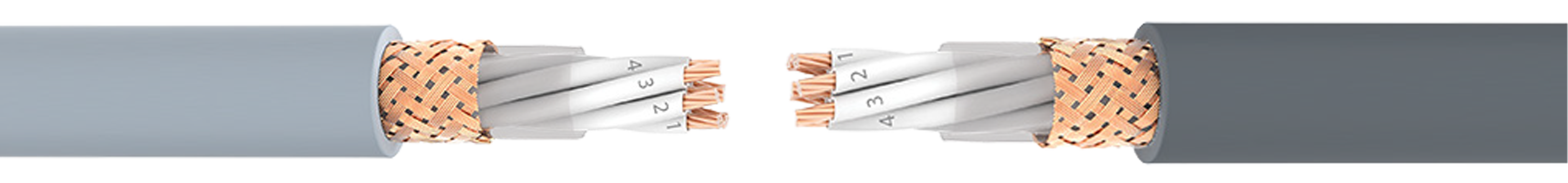

FM2XCH-MULTI-CORE

TECHNICAL DATA

  • Max. Operating Temperature: 90°C
  • Max. Short Circuit Temperature: (max. 5 sec.) 200°C
  • Rated Voltage: 150/250V
  • Min. Bending Radius: 6x Cable Outer Diameter
  • Production Standard: IEC 60092/353,
    IEC 60092/350-360, IEC 60332/1-2,
    IEC 60332/3-22 Cat A, IEC 60754 / 1-2,
    IEC 61034 / 1-2 (DIN EN 50268 / 1-2), IEC60811 /403

CONSTRUCTION

  • Conductor: Electrolytic, stranded, annealed copper wire IEC 60228 Class 2 (Class 5 and / or tinned on request)
  • Insulation: Cross linked polyethylene compound (XLPE)
  • Inner Covering: Separating foil
  • Screen: Electrolytic copper braided screen (Min. 90% coverage) (Tinned copper wire braid on reguest)
  • Outer Sheath: Halogen-free, flame retardant, polyolefin based compound (SHF 1)
  • Color: Black or Grey

CODE of CABLE

  • FM2XCH MULTI CORE

APPLICATION

These cables are used as control and signal cables in various electromechanical and electronic equipments of marine vehicles, in most areas & on open deck in ships.

SECTION RANGE

  • From 0.5mm2 up to 2.5mm2

CONDUCTOR QUANTITY

  • From 2 cores up to 36 cores

COLOUR CODE of CABLE

  • Insulation Colours code could be according to the
    International Standards or customer’s request/demand.
    * Other colours can be produced upon the customer
    requests.
