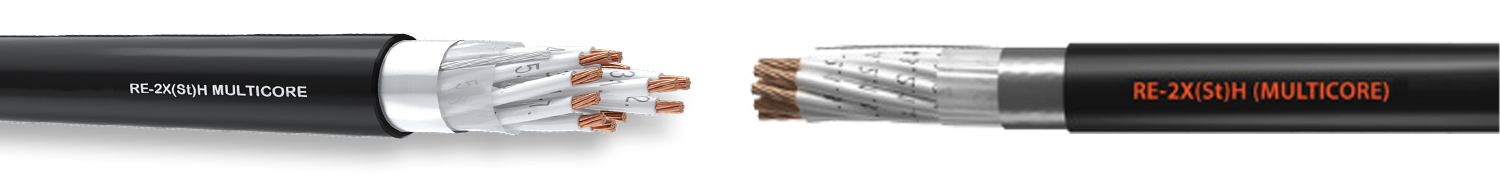

XLPE-INSULATED-PVC-SHEATHED-OSCR-MULTICORE

TECHNICAL DATA

  • Max. Operating Temperature: 90°C
  • Rated Voltage: 300/500V
  • Min. Bending Radius: 7.5x Cable Outer Diameter
  • Production Standard: EN 50288-7

CONSTRUCTION

Conductor: Electrolytic, stranded, annealed plain copper

wires to IEC 60228 Class 2 (Class 1 or Class 5 and/or tinned on request)

Insulation: XLPE compound to EN 50290-2-29

Binder Tape: Polyester foil on overall cable core formed by stranded cores

Collective Screen: Aluminium/polyester foil with a tinned

copper drain wire in direct contact with the metallic side of the foil

Outer Sheath: Flame retardant PVC compound to EN50290-2-22.

Blue for intrinsically safe cable, Black for UV resistant and/or

non-intrinsically safe cable, Gray for indoor applications

CODE of CABLE

  • CU/XLPE/OSCR/PVC; RE-2X(St)Y-fl (MULTICORE)

INTRODUCTION

These cables used for connecting instruments and control
systems for analogue or digital signal transmission for indoor
and outdoor applications, chemistry industry, petrochemistry
industry, power plants, indoors and outdoors, dry, damp and
wet environments, gas stations, water conveyance systems.
These cables shall not be connected directly to mains electricity
supply or other low impedance sources, since they are not
designed to be used for power supply.

SECTION RANGE

  • From 0.50mm2 up to 2.5mm2

CONDUCTOR QUANTITY

  • From 1 core up to 50 cores

COLOUR CODE of CABLE

  • Insulation Colours code could be according to the
    International Standards or customer’s request/demand.
    * Other colours can be produced upon the customer
    requests.
