TECHNICAL DATA
- Max. Operating Temperature: 90°C
- Max. Short Circuit Temperature: (max. 5 sec.) 200°C
- Permanent Tensile Force: 15 N/mm2
- Production Standard: BS 6708
CONSTRUCTION
Conductor: Electrolytic stranded tinned Class 5 copper wire IEC 60228
Insulation: EPR
Screen: Tinned copper/ Nylon braided screen over phase cores
Layup: All cores are laid up around the bare copper earth core and in contact with each other
Bedding: Rubber based bedding compound
Outer Sheath: Heavy duty chloroprene outer sheath
CODE of CABLE

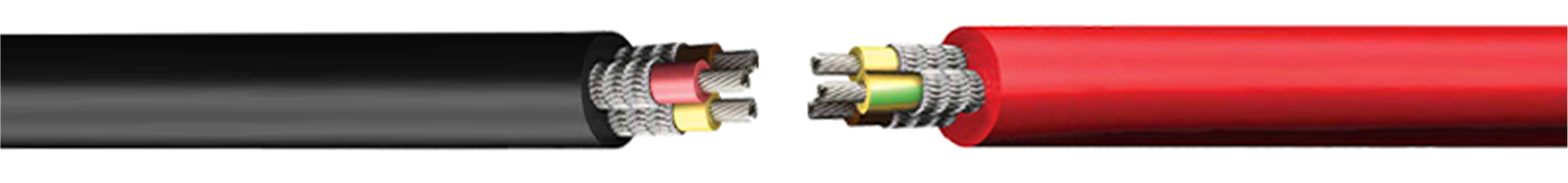

- TYPE 730
INTRODUCTION
Type 730 cables are used as trailing cables for supplying large machines. These cables are ideal for use in both deep mines and on the surface, where explosive gases and dust might gather.
SECTION RANGE
- From 35mm2 up to 150mm2
CONDUCTOR QUANTITY
- Three cores, all with composite individual screens laid up in contact with each other. Large cross-section types have central earth conductor as well.
COLOUR CODE of CABLE
- Insulation Colour code could be according to the International Standards or customer’s request/demand.
NOTE: These cables should not be installed at temperatures below -40°C or above 80°C
