TECHNICAL DATA
- Max. Operating Temperature: 90°C
- Max. Short Circuit Temperature: (max. 5 sec.) 200°C
- Permanent Tensile Force: 15 N/mm2
- Production Standard: BS 6708

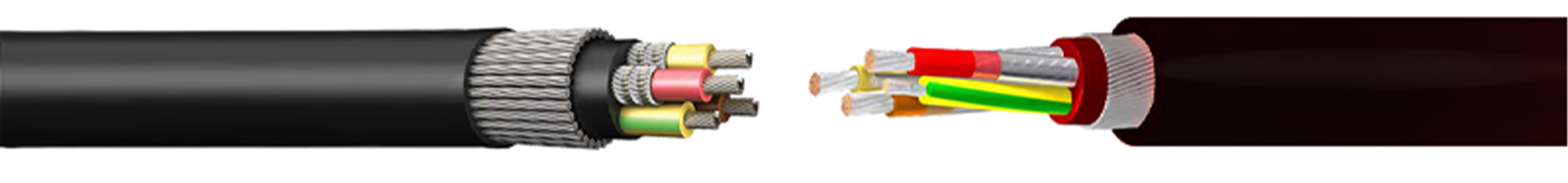

CONSTRUCTION
Conductor: Electrolytic stranded tinned Class 5 copper wire
DIN VDE 0295
Insulation: EPR
Screen: Tinned copper/ Nylon braided screen over phase cores. Ground core is not screened
Layup: All cores are laid up in contact with each other
Bedding: Rubber based bedding compound
Armour: Galvanized steel pliable armour
Outer Sheath: Heavy duty chloroprene outer sheath
CODE of CABLE
- TYPE 331
INTRODUCTION
Used in dry, damp and wet places, externally, in where heavy mechanical effects exist, in mines, in lift and transfer rolled trolley systems and similar machines as trailing and feeding cables.
SECTION RANGE
- From 25mm2 up to 125mm2
CONDUCTOR QUANTITY
- Three phase cores, all with composite individual screens and one unscreened earth core laid up in contact with each other. Cable has pliable armour in between inner and outer sheaths.
COLOUR CODE of CABLE
- Insulation Colour code could be according to the International Standards or customer’s request/demand.
NOTE: These cables should not be installed at temperatures below -40°C or above 80°C
