TECHNICAL DATA
- Max. Operating Temperature: 90°C
- Max. Short Circuit Temperature: (max. 5 sec.) 200°C
- Permanent Tensile Force: 15 N/mm2
- Production Standard: BS 6708
CONSTRUCTION
Conductor: Electrolytic stranded tinned Class 5 copper wire IEC 60228
Insulation: EPR (Ground core is not insulated)
Separator: Coloured Textile tape for core identification
Screen: Tinned copper/ Nylon braided screen over phase and pilot cores
Layup: All cores are laid up in contact with the bare copper earth conductor
Bedding: Rubber based bedding compound
Outer Sheath: Heavy duty chloroprene outer sheath
CODE of CABLE

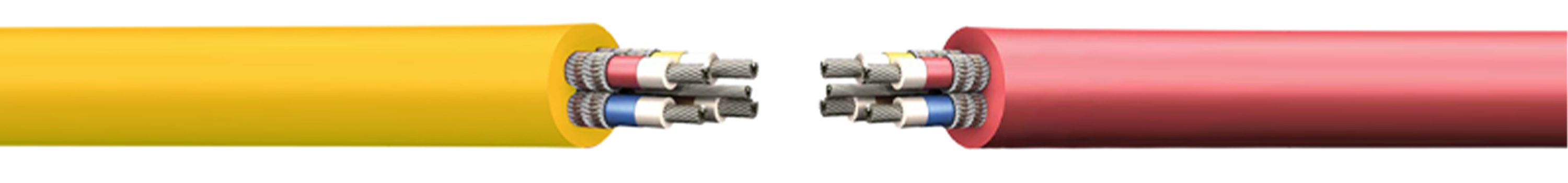

- TYPE 307M
INTRODUCTION
Type 307M cables are used for fixed installation and flexible operation as power supply cables to motors, distribution boards, etc., in underground mining applications. The cables are used with coal cutters in cable chains (cable handlers) and similar face equipment.
SECTION RANGE
- From 25mm2 up to 240mm2
CONDUCTOR QUANTITY
- Three phase cores with composite individual screens and one unscreened pilot core laid up in contact with each other and the bare earth conductor in the centre.
COLOUR CODE of CABLE
- Insulation Colour code could be according to the International Standards or customer’s request/demand.
NOTE: These cables should not be installed at temperatures below -40°C or above 80°C
