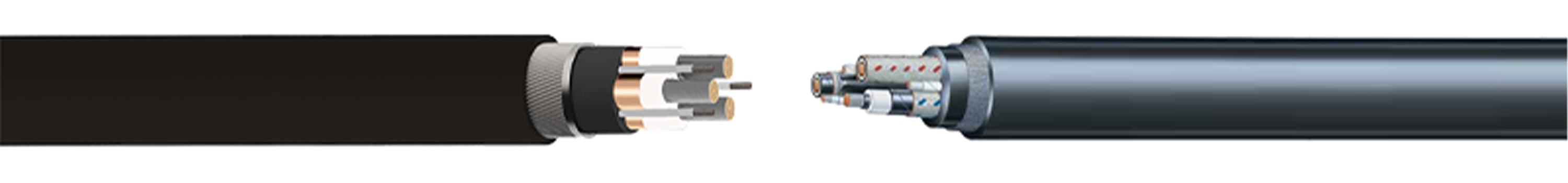

TYPE-260-MINING-CABLES-AS-NZS-1802

TECHNICAL DATA

  • Max. Operating Temperature: 90°C
  • Max. Short Circuit Temperature: (max. 5 sec.) 250°C
  • Permanent Tensile Force: 15 N/mm2
  • Production Standard: AS/NZS 1802

CONSTRUCTION

Conductor: Electrolytic stranded tinned Class 6 copper wire
AS/NZS 1125
Separator: Semiconducting layer over power conductors (3.3/3.3kV and above) and earth conductors
(Except for pilot cores)
Insulation: R-EP-90 (acc. to AS/NZS 3808)
Separator: SSemiconducting layer (3.3/3.3kV and above)
(Except for pilot cores)
Screen: Tinned copper/ Nylon braided screen over phase cores
Layup: Cores are laid up over a semiconducting cradle without contacting each other but in contact with interstitial pilot cores
Bedding: Elastomeric compound
Separator: Galvanized steel pliable armour
(acc. to AS/NZS 3863)
Outer Sheath: Heavy-duty elastomer outer sheath
(acc. to AS/NZS 3808)

CODE of CABLE

  • TYPE 260

INTRODUCTION

Type 260 cables can be used as supply cable where mechanical protection and strength is required. May be used as a feeder
cable to machinery and suitable for sand mining operations.

SECTION RANGE

  • From 16mm2 up to 300mm2

CONDUCTOR QUANTITY

  • Three phase cores with composite screens and three interstitial pilot cores laid up around a semi conductive cradle for support and protection of power cores. Supported with a flexible armour made of galvanized steel wires.

COLOUR CODE of CABLE

  • Insulation Colour code could be according to the International Standards or customer’s request/demand.

NOTE: These cables should not be installed at temperatures below -40°C or above 80°C
