TECHNICAL DATA
- Max. Operating Temperature: 90°C
- Max. Short Circuit Temperature: (max. 5 sec.) 200°C
- Permanent Tensile Force: 15 N/mm2
- Production Standards: BS 6708
CONSTRUCTION
Conductor: Electrolytic, stranded, tinned Class 5 copper wire IEC 60228
Insulation: EPR
Separator: Colored Textile tape for core identification
Screen: Tinned copper braided screen over phase and pilot cores
Layup: All cores are laid parallel in flat configuration without contacting each other
Outer Sheath: Heavy duty chloroprene outer sheath
CODE of CABLE
- TYPE FS4
INTRODUCTION
Type FS4 cables are used as supplying cable on overhead catenary systems and for similar purposes. These cables can be
applied in deep mines where explosive gasses and dust can accumulate and on the surface.
SECTION RANGE
- From 2.5mm2 up to 4mm2
CONDUCTOR QUANTITY

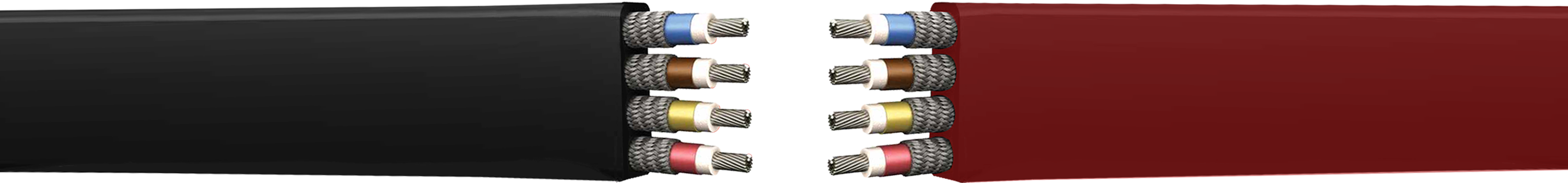

- Three phase cores and one pilot core, all with individual screens are laid parallel in flat configuration without contacting each other.
COLOUR CODE of CABLE
- Insulation Colour code could be according to the International Standards or customer’s request/demand.
NOTE: These cables should not be installed at temperatures below -40°C or above 80°C
