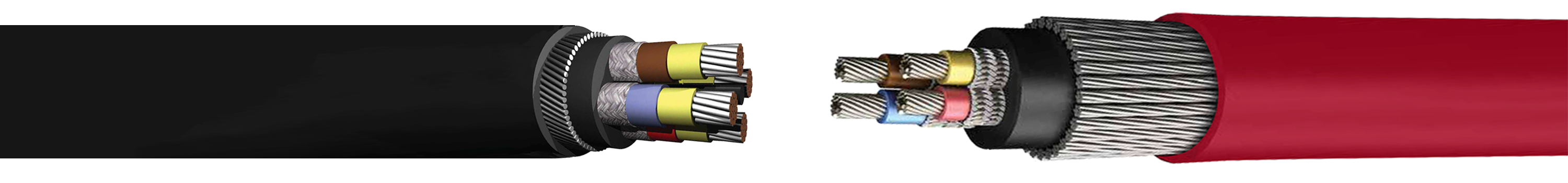

TYPE-62-63-64-MINING-CABLES

TECHNICAL DATA

  • Max. Operating Temperature: 90°C
  • Max. Short Circuit Temperature: (max. 5 sec.) 200°C
  • Permanent Tensile Force: 15 N/mm2
  • Production Standards: BS 6708

CONSTRUCTION

Conductor: Electrolytic, stranded, tinned Class 5 copper wire IEC 60228
Insulation: EPR
Screen: Tinned copper / Nylon braided screen over phase and pilot cores
Layup: All cores are laid up in contact with each other
Bedding: Rubber based bedding compound
Armour: Galvanized steel flexible armour
Outer Sheath: Heavy duty chloroprene outer sheath

CODE of CABLE

  • TYPE 62, TYPE 63, TYPE 64

INTRODUCTION

These cables are used as trailing cables for mine roadway extension cables and mechanically protected cables in quarries and coal face lighting. Type 62, 63, and 64 cables produce with pliable galvanized steel wire armouring.

SECTION RANGE

  • These cables can be produce with 4mm2 section

CONDUCTOR QUANTITY

  • Two, three or four cores, all with composite individual screens laid up in contact with each other. Cable has pliable armour in between inner and outer sheaths.

COLOUR CODE of CABLE

  • Insulation Colour code could be according to the International Standards or customer’s request/demand.

NOTE: These cables should not be installed at temperatures below -40°C or above 80°C
