TECHNICAL DATA
- Max. Operating Temperature: 90°C
- Max. Short Circuit Temperature: (max. 5 sec.) 200°C
- Permanent Tensile Force: 15 N/mm2
- Production Standards: BS 6708
CONSTRUCTION
Conductor: Electrolytic, stranded, tinned Class 5 copper wire IEC 60228
Insulation: EPR or TPE
Screen: Tinned copper / Nylon braided screen over cores
Layup: All cores are laid up in contact with each other
Bedding: Rubber based bedding compound
Armour: Galvanized steel flexible armour
Outer Sheath: Heavy duty chloroprene outer sheath
CODE of CABLE

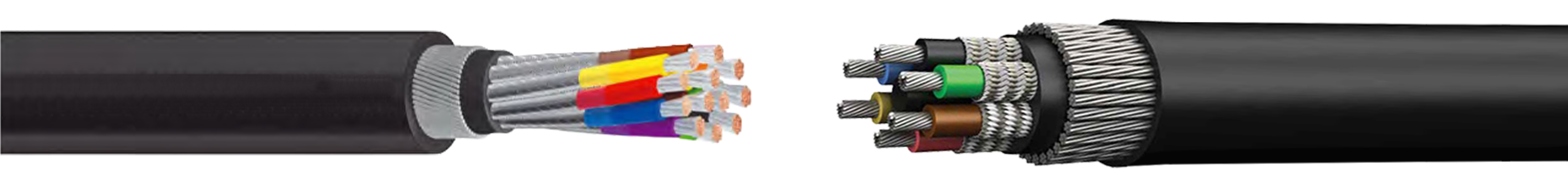

- TYPE 506, 512, 518, 524
INTRODUCTION
These cables are suitable for fixed installation in underground mines to provide remote control circuits and for
interconnections between sections of mining machines or between machine sections and associated auxiliary equipment.
SECTION RANGE
- From 0.93mm2 up to 1.34mm2
CONDUCTOR QUANTITY
- Multi cores, all with composite individual screens laid up in contact with each other. Cable has pliable armour in between inner and outer sheaths.
COLOUR CODE of CABLE
- Insulation Colour code could be according to the International Standards or customer’s request/demand.
NOTE: These cables should not be installed at temperatures below -40°C or above 80°C
