TECHNICAL DATA
- Max. Operating Temperature: 90°C
- Max. Short Circuit Temperature: (max. 5 sec.) 200°C
- Permanent Tensile Force: 15 N/mm2
- Production Standards: BS 6708
CONSTRUCTION
Conductor: Electrolytic, stranded, tinned Class 5 copper wire IEC 60228
Insulation: EPR
Separator: Colored Textile tape for core identification
Screen: Tinned copper / Nylon braided screen over phase cores. Pilot core and ground core are not screened
Layup: All cores are laid up without contacting each other
Bedding: Conducting elastromeric compound
Outer Sheath: Heavy duty chloroprene outer sheath

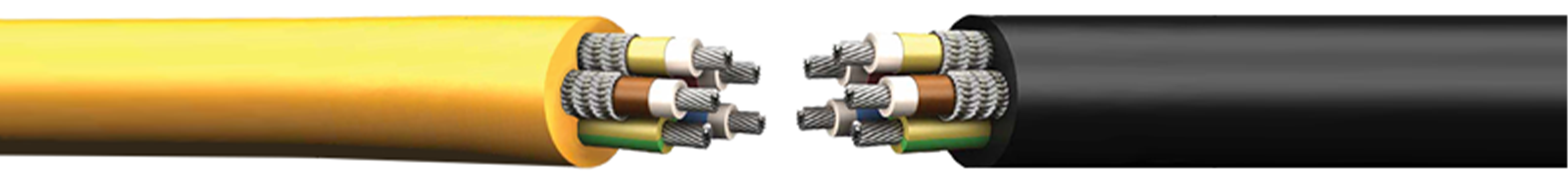

CODE of CABLE
- TYPE 44
INTRODUCTION
Type 44 cables are used for supplying hand-held drilling machines. These cables are suitable to use in deep mines where explosive gasses and dust can accumulate and on surface.
SECTION RANGE
- These cable can be produced with 6mm2 section
CONDUCTOR QUANTITY
- Three phase cores with composite individual screens, one unscreened pilot core and one unscreened earth core laid up around an elastomeric cradle and in contact with each other.
COLOUR CODE of CABLE
- Insulation Colour code could be according to the International Standards or customer’s request/demand.
NOTE: These cables should not be installed at temperatures below -40°C or above 80°C
