TECHNICAL DATA
- Max. Operating Temperature: 90°C
- Max. Short Circuit Temperature: (max. 5 sec.) 200°C
- Permanent Tensile Force: 15 N/mm2
- Production Standards: BS 6708
CONSTRUCTION
Conductor: Electrolytic, stranded, tinned Class 5 copper wire IEC 60228
Insulation: EPR
Layup: All cores are laid up without contacting each other
Bedding: Conducting elastromeric compound
Outer Sheath: Heavy duty chloroprene outer sheath

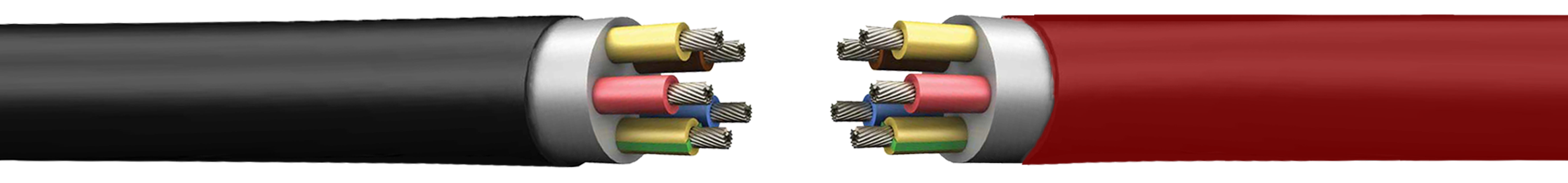

CODE of CABLE
- TYPE 43
INTRODUCTION
Type 43 cables are used for supplying hand-held drilling machines. They are used in deep mines where explosive gasses and dust can accumulate and on surface.
SECTION RANGE
- These cable can be produced with 6mm2 section
CONDUCTOR QUANTITY
- Contains three phase cores, one pilot core and one earth core. All cores are laid up around a semiconducting cradle and screened by semiconducting filler as well.
COLOUR CODE of CABLE
- Insulation Colour code could be according to the International Standards or customer’s request/demand.
NOTE: These cables should not be installed at temperatures below -40°C or above 80°C
