TECHNICAL DATA
- Max. Operating Temperature: 90°C
- Max. Short Circuit Temperature: (max. 5 sec.) 250°C
- Permanent Tensile Force: 15 N/mm2
- Production Standard: AS/NZS 2802

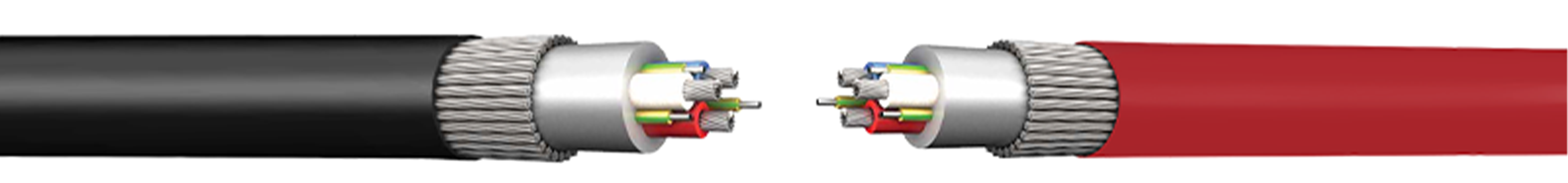

CONSTRUCTION
Conductor: Electrolytic, multiple-stranded circular flexible tinned copper wire (rope lay) AS/NZS 1125-2.10
Insulation: R-EP-90 (Class 2, acc to AS/NZS 3808)
Layup: Cores are laid up over a elastomeric cradle in contact with each other and with interstitial earth cores
Bedding: Elastomeric compound
Armour: Galvanized steel pliable armour
(acc. to AS/NZS 3863)
Outer Sheath: Heavy-duty elastomer outer sheath
(acc.to AS/NZS 3808)
CODE of CABLE
- TYPE 412
INTRODUCTION
Type 412 cables are used in applications where damage is likely and armour can reduce cases of costly downtime.
Suitable for use as a feeder cable in sand mining operations.
SECTION RANGE
- From 35mm2 up to 300mm2
CONDUCTOR QUANTITY
- Three phase cores and three interstitial pilot cores laid up around a semi conductive cradle for support and protection of power cores. Supported with a flexible armour made of galvanized steel wires.
COLOUR CODE of CABLE
- Insulation Colour code could be according to the International Standards or customer’s request/demand.
NOTE: These cables should not be installed at temperatures below -40°C or above 80°C
