TECHNICAL DATA
- Max. Operating Temperature: 90°C
- Max. Short Circuit Temperature: (max. 5 sec.) 250°C
- Permanent Tensile Force: 15 N/mm2
- Production Standard: AS/NZS 1802, AS/NZS 1125

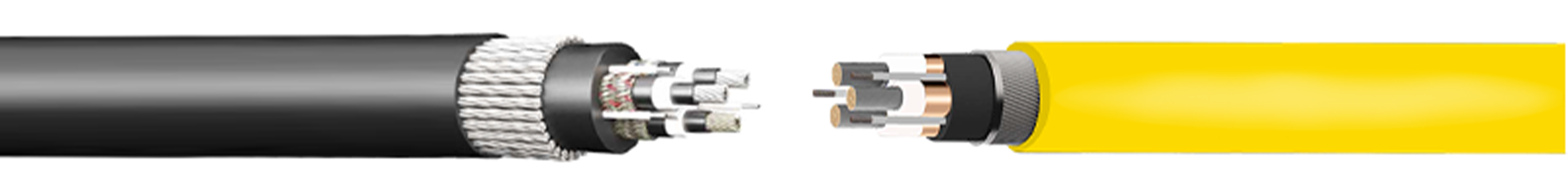

CONSTRUCTION
Conductor: Electrolytic, multiple-stranded circular flexible tinned copper wire (rope lay) AS/NZS 1125-2.10
Separator: Semiconducting layer over power conductors
Insulation: Power and pilot cores are insulated with R-EP-90 (acc. to AS/NZS 3808). Earth cores are not insulated
Layup: Cores are laid up over a semiconducting cradle with one pilot core in the center and without contacting each other, but in contact with interstitial earth cores
Bedding: Semiconducting elastomeric compound
Separator: Open weave braid for reinforcement
Outer Sheath: Heavy-duty elastomer outer sheath
(acc. to AS/NZS 3808)
CODE of CABLE
- TYPE 275
INTRODUCTION
Type 275 cables are for general and underground coal mining purposes. These cables are used in shuttle cars and pump cables, and other industrial applications.
SECTION RANGE
- From 16mm2 up to 50mm2
CONDUCTOR QUANTITY
- Three phase cores and three interstitial earth cores laid up around a semi conductive cradle containing a central pilot core. All cores are screened by semi conductive filler as well. Contains open weave braid reinforcement layer.
COLOUR CODE of CABLE
- Insulation Colour code could be according to the International Standards or customer’s request/demand.
NOTE: These cables should not be installed at temperatures below -40°C or above 80°C
