TECHNICAL DATA
- Max. Operating Temperature: 90°C
- Max. Short Circuit Temperature: (max. 5 sec.) 200°C
- Permanent Tensile Force: 15 N/mm2
- Production Standards: AS/NZS 1802

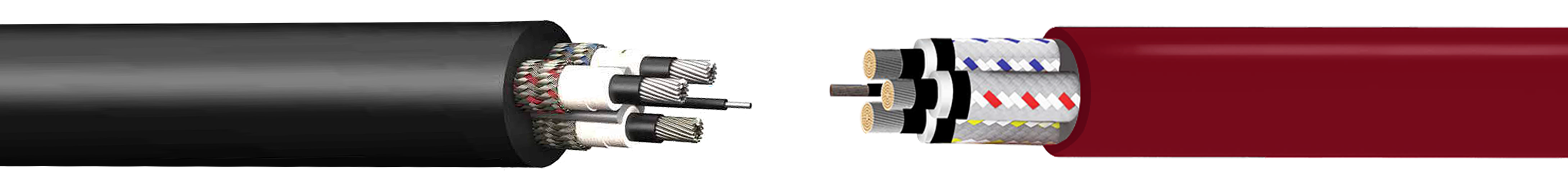

CONSTRUCTION
Conductor: Electrolytic, stranded, tinned Class 5 copper wire AS/NZS 1125
Insulation: R-EP-90 (acc. to AS/NZS 3808)
Screen: Tinned copper/ Nylon braided screen over phase cores
Layup: Cores are laid up over a semiconducting cradle with one pilot core in the center and without contacting each other
Outer Sheath: Heavy-duty elastomer outer sheath (acc. to AS/NZS 3808)
CODE of CABLE
- TYPE 210
INTRODUCTION
Type 210 cables are robust flexible cables primarily designed for underground coal mines. However, many of these are also suitable for other applications requiring a heavy duty flexible cable, like surface mines, wharf cranes, etc.
SECTION RANGE
- From 1.5mm2 up to 2.5mm2
CONDUCTOR QUANTITY
- Three phase cores with composite screens laid up around a semi conductive cradle containing a central pilot core.
COLOUR CODE of CABLE
- Insulation Colour code could be according to the International Standards or customer’s request/demand.
NOTE: These cables should not be installed at temperatures below -40°C or above 80°C
