TECHNICAL DATA
- Max. Operating Temperature: 90°C
- Max. Short Circuit Temperature: (max. 5 sec.) 200°C
- Permanent Tensile Force: 15 N/mm2
- Production Standards: BS 6708
CONSTRUCTION
Conductor: Electrolytic, stranded, tinned Class 5 copper wire IEC 60228
Insulation: EPR (Ground cores are not insulated)
Separator: Coloured textile tape for core identification
Screen: Tinned copper/Nylon braided screen over phase cores. Pilot core is not screened.
Layup: All cores are laid up in contact with the bare copper earth conductor.
Bedding: Rubber based bedding compound.
Outer Sheath: Heavy duty chloroprene outer sheath
CODE of CABLE

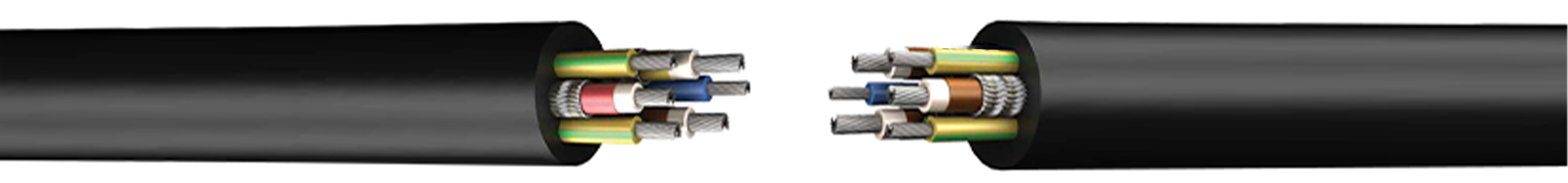

- TYPE 16
INTRODUCTION
Type 16 cables are used for supplying excavating, crushing machines and equipment.
SECTION RANGE
- From 25mm2 up to 95mm2
CONDUCTOR QUANTITY
- Three phase cores with composite individual screens, one unscreened pilot core and one unscreened earth core laid up around an elastomeric cradle and in contact with each other.
COLOUR CODE of CABLE
- Insulation Colour code could be according to the International Standards or customer’s request/demand.
NOTE: These cables should not be installed at temperatures below -40°C or above 80°C
